Device Dimension :120*65*50mm
Device Weight :365g
Telecom Chipset : Mediatek MT2503
Network : GSM&GPRS
Frequency Band : GSM 850/900/1800/1900MHz
Location Chipset : Mediatek MT2503
Location Way : LBS/AGPS/GPS/Glonass
Location accuracy : <10 meters
Tracking sensitivity : -159dBm
Humidity : 5%–95% non-condensing
Internal Battery : 3.7V 20000mAh Li-Polymer battery
Standby Time: 240days
Charging Way: USB Charger
Sim Card: Nano SIM card

1. GPS+LBS Dual Positioning Ways:
If the GPS signal is good, the device will locate via GPS satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-2000 meters;
2. Real-time Tracking:
You will real-time track the device on google maps via mobile phone, tablet and computer, and the minimum data upload interval is 10 seconds!
3. History Route Playback:
The APP and web server can record the upload data of the device for up to 6 months, you will playback the history route at any time!
4. Long Standby Time:
It has a built-in 3.7V 20000mAh Li-ion battery, the standby time is up to 240 days and the working time is up to 15-20 days;
5. Powerful Magnetic:
It has built-in powerful magnets, can be very easily installed.
6. Waterproof IP67:
The waterproof level of this device is IP67, it can resist splash water but can’t be put underwater!
7. Remotely Voice Monitor:
Send “Monitor+Password” to the device first, then the device will turn into monitor mode, now if you make a call to the SIM number in the device, it will pick up your call automatically and you will monitor the voice around the device!
8. Overspeed Alarm:
This alarm works only under continuous positioning mode. When the unit speed exceeds the speed you preset, it will send the message “speed alarm!” to the admin number every 5 minutes.
9. Shock Alarm:
After you did the shake alarm setting, please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit gets shocked.
10. Movement Alarm:
When the unit stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command “move+passord”, then in case, the device moved 500m it will send alarm SMS “Move Alarm+Latitude and longitude” to the authorized number.
11. Geo-fence:
set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP









Demo: icardemo password: 123456
Track your devices on our site : www.icargps.net

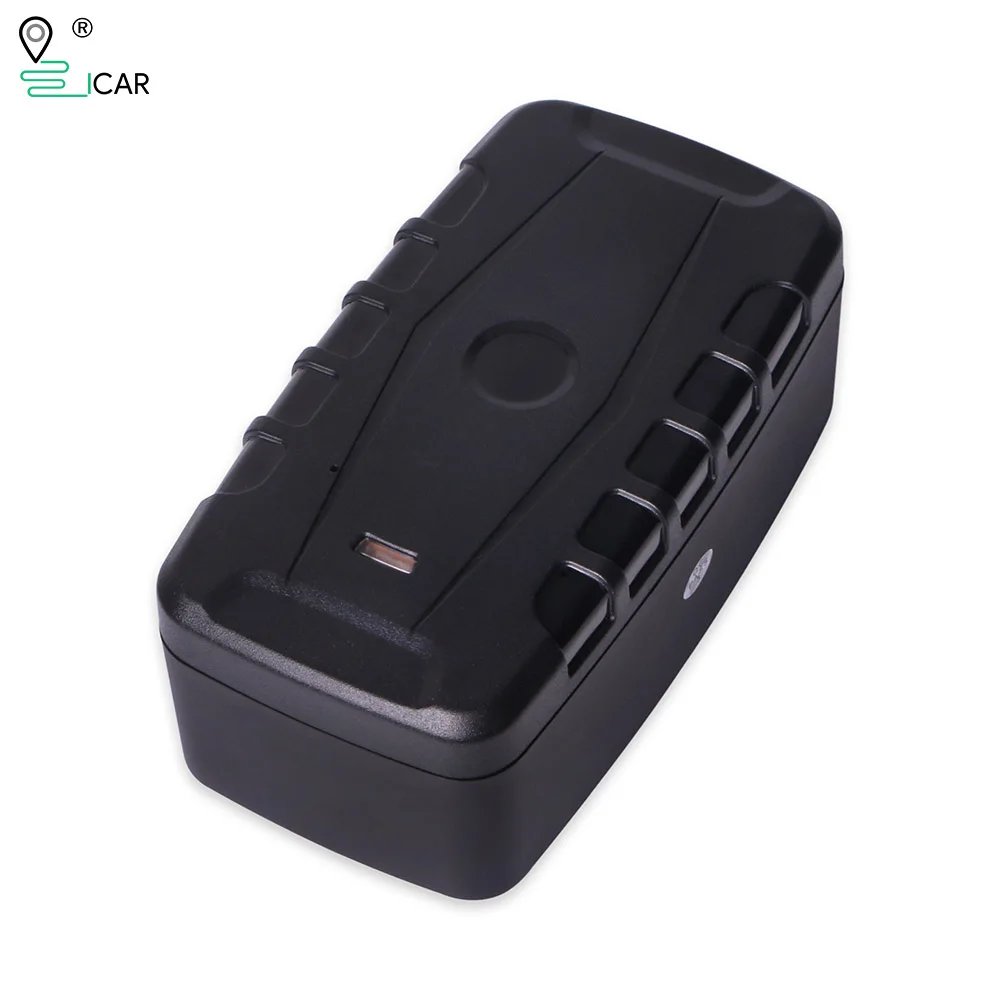

1pc * GPS Tracker LK209C(20000 mAh battery)
1pc * Charger
1pc * USB Cable
1pc * User Manual
1pc * Original Box

l Q:Start up Fail?
l A:Check the device power on or not.
l Q:The device can not obtain location information?
l A:Place the unit in the open area to test.
l Q:How to choose a SIM card?
l A: the SIM card must support GSM&GPRS,and ensure that the card has enough currency and credit.
l Q: How to use in foreign countries?
l A:please set the APN before use,please edit the text “APN123456 CMNET “ and send it to the SIM card of the device,CMNET is Chinese operator’s APN, Replace the corresponding APN when using in other countries, APN details, please consult your local SIM card carrier.
